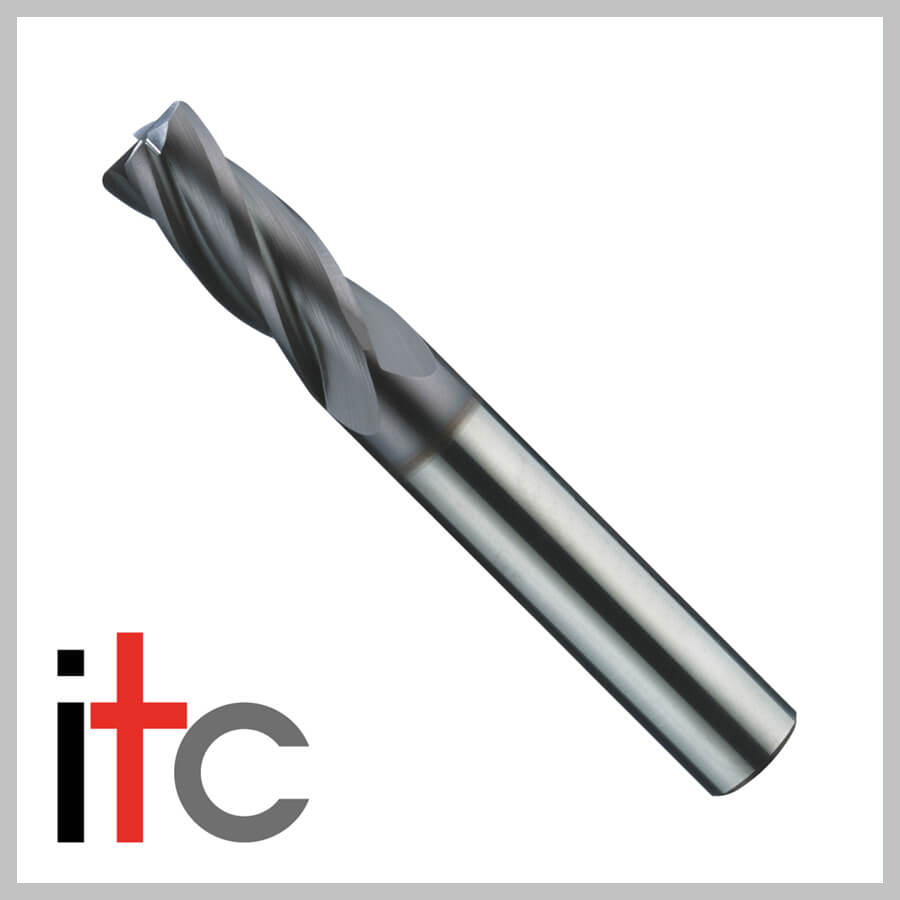

3MM 4 FL CARBIDE E/M 6MM SHANK FTR 0.25MM RADIUS (3x6x8x55)

4061 - 4 Flute 30° Helix With Roll Relief, Radius & Coating

High Performance Solid Carbide End Mills

4 Flute
30° Helix
Standard Length
Radius
Centre Cutting
AlTiN Coating

STP 3D Models 4061.zip

Cat. No.	SIZE	SHANK DIAMETER	OVERALL LENGTH	LENGTH OF CUT	REACH	RADIUS	List Price	Discount %	Price
4061-3.0C-0.25R	3	6	55	8	11	0.25	£101.02	40	£ 60.61
4061-3.0C-0.5R	3	6	55	8	11	0.5	£101.02	40	£ 60.61
4061-3.0C-0.75R	3	6	55	8	11	0.75	£101.02	40	£ 60.61
4061-3.0C-1.0R	3	6	55	8	11	1	£106.54	40	£ 63.92
4061-4.0C-0.25R	4	6	55	11	14	0.25	£101.02	40	£ 60.61
4061-4.0C-0.5R	4	6	55	11	14	0.5	£101.02	40	£ 60.61
4061-4.0C-0.75R	4	6	55	11	14	0.75	£101.02	40	£ 60.61
4061-4.0C-1.0R	4	6	55	11	14	1	£106.54	40	£ 63.92
4061-5.0C-0.25R	5	6	55	13	16	0.25	£101.02	40	£ 60.61
4061-5.0C-0.5R	5	6	55	13	16	0.5	£101.02	40	£ 60.61
4061-5.0C-1.0R	5	6	55	13	16	1	£106.54	40	£ 63.92
4061-6.0C-0.25R	6	6	58	13	-	0.25	£105.52	40	£ 63.31
4061-6.0C-0.5R	6	6	58	13	-	0.5	£105.52	40	£ 63.31
4061-6.0C-0.75R	6	6	58	13	-	0.75	£105.52	40	£ 63.31
4061-6.0C-1.0R	6	6	58	13	-	1	£107.24	40	£ 64.34
4061-6.0C-1.25R	6	6	58	13	-	1.25	£107.24	40	£ 64.34
4061-6.0C-1.5R	6	6	58	13	-	1.5	£107.87	40	£ 64.72
4061-6.0C-2.0R	6	6	58	13	-	2	£108.93	40	£ 65.36
4061-8.0C-0.25R	8	8	64	19	-	0.25	£129.95	40	£ 77.97
4061-8.0C-0.5R	8	8	64	19	-	0.5	£129.95	40	£ 77.97
4061-8.0C-0.75R	8	8	64	19	-	0.75	£129.95	40	£ 77.97
4061-8.0C-1.0R	8	8	64	19	-	1	£129.95	40	£ 77.97
4061-8.0C-1.25R	8	8	64	19	-	1.25	£129.95	40	£ 77.97
4061-8.0C-1.5R	8	8	64	19	-	1.5	£134.08	40	£ 80.45
4061-8.0C-2.0R	8	8	64	19	-	2	£134.08	40	£ 80.45
4061-8.0C-2.5R	8	8	64	19	-	2.5	£134.08	40	£ 80.45
4061-8.0C-3.0R	8	8	64	19	-	3	£136.21	40	£ 81.73
4061-10.0C-0.25R	10	10	72	22	-	0.25	£145.99	40	£ 87.59
4061-10.0C-0.5R	10	10	72	22	-	0.5	£145.99	40	£ 87.59
4061-10.0C-0.75R	10	10	72	22	-	0.75	£145.99	40	£ 87.59
4061-10.0C-1.0R	10	10	72	22	-	1	£145.99	40	£ 87.59
4061-10.0C-1.25R	10	10	72	22	-	1.25	£145.99	40	£ 87.59
4061-10.0C-1.5R	10	10	72	22	-	1.5	£145.99	40	£ 87.59
4061-10.0C-2.0R	10	10	72	22	-	2	£150.74	40	£ 90.44
4061-10.0C-2.5R	10	10	72	22	-	2.5	£150.74	40	£ 90.44
4061-10.0C-3.0R	10	10	72	22	-	3	£155.44	40	£ 93.26
4061-12.0C-0.25R	12	12	84	26	-	0.25	£185.35	40	£ 111.21
4061-12.0C-0.5R	12	12	84	26	-	0.5	£185.35	40	£ 111.21
4061-12.0C-0.75R	12	12	84	26	-	0.75	£185.35	40	£ 111.21
4061-12.0C-1.0R	12	12	84	26	-	1	£185.35	40	£ 111.21
4061-12.0C-1.25R	12	12	84	26	-	1.25	£185.35	40	£ 111.21
4061-12.0C-1.5R	12	12	84	26	-	1.5	£185.35	40	£ 111.21
4061-12.0C-2.0R	12	12	84	26	-	2	£185.35	40	£ 111.21
4061-12.0C-2.5R	12	12	84	26	-	2.5	£185.35	40	£ 111.21
4061-12.0C-3.0R	12	12	84	26	-	3	£190.06	40	£ 114.04
4061-16.0C-0.25R	16	16	92	32	-	0.25	£266.33	40	£ 159.80
4061-16.0C-0.5R	16	16	92	32	-	0.5	£266.33	40	£ 159.80
4061-16.0C-0.75R	16	16	92	32	-	0.75	£266.33	40	£ 159.80
4061-16.0C-1.0R	16	16	92	32	-	1	£266.33	40	£ 159.80
4061-16.0C-1.25R	16	16	92	32	-	1.25	£266.33	40	£ 159.80
4061-16.0C-1.5R	16	16	92	32	-	1.5	£266.33	40	£ 159.80
4061-16.0C-2.0R	16	16	92	32	-	2	£266.33	40	£ 159.80
4061-16.0C-2.5R	16	16	92	32	-	2.5	£266.33	40	£ 159.80
4061-16.0C-3.0R	16	16	92	32	-	3	£271.42	40	£ 162.85
4061-16.0C-4.0R	16	16	92	32	-	4	£278.07	40	£ 166.84
4061-20.0C-0.25R	20	20	105	38	-	0.25	£490.06	40	£ 294.04
4061-20.0C-0.5R	20	20	105	38	-	0.5	£490.06	40	£ 294.04
4061-20.0C-0.75R	20	20	105	38	-	0.75	£490.06	40	£ 294.04
4061-20.0C-1.0R	20	20	105	38	-	1	£490.06	40	£ 294.04
4061-20.0C-1.5R	20	20	105	38	-	1.5	£490.06	40	£ 294.04
4061-20.0C-2.0R	20	20	105	38	-	2	£490.06	40	£ 294.04
4061-20.0C-2.5R	20	20	105	38	-	2.5	£490.06	40	£ 294.04
4061-20.0C-3.0R	20	20	105	38	-	3	£495.17	40	£ 297.10
4061-20.0C-4.0R	20	20	105	38	-	4	£501.78	40	£ 301.07
