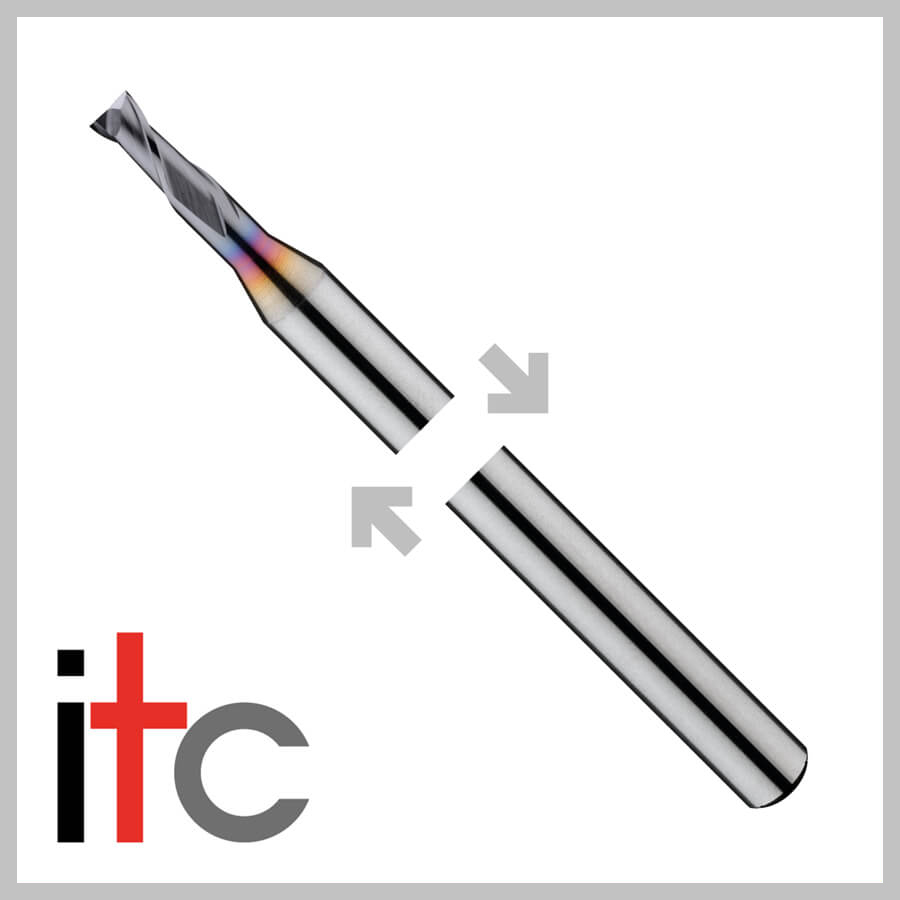

0.4MM 2 FLT E/MILL 2MM REACH X 0.36MM NECK DIA* TIALN (0.4X3X0.6X38)

7N22 - 2 Flute 30° Helix With Facet Relief & Coating

High Performance Solid Carbide End Mills

2 Flute
30° Helix
Long Length
Extended Reach
Centre Cutting
Facet Relief
AlTiN Coating

Cat. No.	SIZE	SHANK DIAMETER	OVERALL LENGTH	LENGTH OF CUT	REACH	NECK DIAMETER	List Price	Discount %	Price
7N2200400RJ	0.4	3	38	0.6	2	0.34	£89.71	40	£ 53.83
7N2200410RJ	0.4	3	38	0.6	4	0.34	£99.58	40	£ 59.75
7N2200500RJ	0.5	3	38	0.7	2	0.44	£89.71	40	£ 53.83
7N2200510RJ	0.5	3	38	0.7	4	0.44	£89.71	40	£ 53.83
7N2200520RJ	0.5	3	38	0.7	6	0.44	£89.71	40	£ 53.83
7N2200600RJ	0.6	3	38	0.9	2	0.54	£0.00	-
7N2200610RJ	0.6	3	38	0.9	4	0.54	£0.00	-
7N2200620RJ	0.6	3	38	0.9	6	0.54	£105.86	40	£ 63.52
7N2200711RJ	0.7	4	50	1	4	0.64	£89.71	40	£ 53.83
7N2200721RJ	0.7	4	50	1	6	0.64	£0.00	-
7N2200801RJ	0.8	4	50	1.2	4	0.74	£80.52	40	£ 48.31
7N2200811RJ	0.8	4	50	1.2	6	0.74	£80.52	40	£ 48.31
7N2200821RJ	0.8	4	50	1.2	8	0.74	£80.52	40	£ 48.31
7N2200901RJ	0.9	4	50	1.34	6	0.84	£89.38	40	£ 53.63
7N2201001RJ	1	4	50	1.5	6	0.94	£80.52	40	£ 48.31
7N2201011RJ	1	4	50	1.5	8	0.94	£80.52	40	£ 48.31
7N2201021RJ	1	4	50	1.5	10	0.94	£80.52	40	£ 48.31
7N2201031RJ	1	4	50	1.5	12	0.94	£80.52	40	£ 48.31
7N2201201RJ	1.2	4	50	1.5	6	1.14	£80.52	40	£ 48.31
7N2201211RJ	1.2	4	50	1.8	8	1.14	£80.52	40	£ 48.31
7N2201231RJ	1.2	4	50	1.8	12	1.14	£80.52	40	£ 48.31
7N2201401RJ	1.4	4	50	2.1	6	1.34	£80.52	40	£ 48.31
7N2201411RJ	1.4	4	50	2.1	8	1.34	£0.00	-
7N2201421RJ	1.4	4	50	2.1	10	1.34	£80.52	40	£ 48.31
7N2201431RJ	1.4	4	50	2.1	12	1.34	£0.00	-
7N2201441RJ	1.4	4	50	2.1	16	1.31	£80.52	40	£ 48.31
7N2201501RJ	1.5	4	50	2.3	6	1.44	£80.52	40	£ 48.31
7N2201511RJ	1.5	4	50	2.3	10	1.44	£80.52	40	£ 48.31
7N2201521RJ	1.5	4	50	2.3	12	1.44	£80.52	40	£ 48.31
7N2201531RJ	1.5	4	50	2.3	16	1.41	£80.52	40	£ 48.31
7N2201541RJ	1.5	4	63	2.3	18	1.44	£0.00	-
7N2201551RJ	1.5	4	63	2.3	20	1.44	£80.52	40	£ 48.31
7N2201701RJ	1.7	4	50	2.6	6	1.64	£80.52	40	£ 48.31
7N2201721RJ	1.7	4	50	2.6	12	1.64	£80.52	40	£ 48.31
7N2201801RJ	1.8	4	50	2.7	6	1.74	£80.52	40	£ 48.31
7N2201811RJ	1.8	4	50	2.7	10	1.74	£80.52	40	£ 48.31
7N2201821RJ	1.8	4	50	2.7	12	1.74	£85.59	40	£ 51.35
7N2201831RJ	1.8	4	50	2.7	16	1.74	£80.52	40	£ 48.31
7N2201901RJ	1.9	4	50	2.8	6	1.84	£80.52	40	£ 48.31
7N2202001RJ	2	4	50	3	6	1.97	£80.52	40	£ 48.31
7N2202011RJ	2	4	50	3	10	1.96	£80.52	40	£ 48.31
7N2202021RJ	2	4	50	3	16	1.96	£80.52	40	£ 48.31
7N2202031RJ	2	4	63	3	20	1.196	£80.52	40	£ 48.31
7N2202041RJ	2	4	75	3	30	1.96	£85.60	40	£ 51.36
7N2202501RJ	2.5	4	50	3.7	8	1.96	£80.52	40	£ 48.31
7N2202511RJ	2.5	4	50	3.7	10	1.96	£80.52	40	£ 48.31
7N2202521RJ	2.5	4	63	3.7	16	2.44	£80.52	40	£ 48.31
7N2202531RJ	2.5	4	63	3.7	20	2.44	£80.52	40	£ 48.31
7N2202541RJ	2.5	4	80	3.7	30	2.44	£85.60	40	£ 51.36
7N2203002RJ	3	6	50	4.5	8	2.94	£89.71	40	£ 53.83
7N2203012RJ	3	6	50	4.5	10	2.94	£89.71	40	£ 53.83
7N2203022RJ	3	6	63	4.5	16	2.94	£89.71	40	£ 53.83
7N2203032RJ	3	6	63	4.5	20	2.94	£89.71	40	£ 53.83
7N2203042RJ	3	6	80	4.5	30	2.94	£92.00	40	£ 55.20
