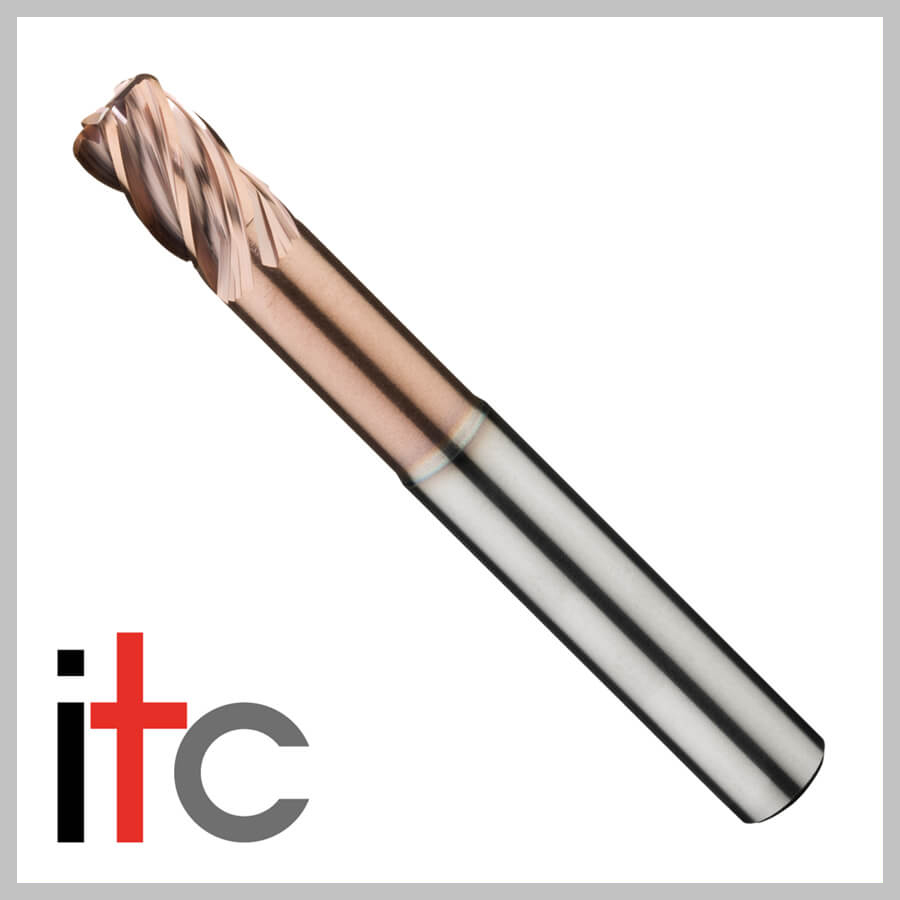

3MM 5 FLT E/MILL HARMONIC FLT GEOMETRY CUPRO COAT 12MM REACH + 0.25MM RADIUS

5041 - 5 Flute Variable Helix With Roll Relief, Harmonic Fluting, Radius & Coating

High Performance Solid Carbide End Mills

5 Flute
Variable Helix
Radius
Roll Relief
Harmonic Fluting
Cupro Coated

STP 3D Models 5041.zip

Cat. No.	SIZE	SHANK DIAMETER	OVERALL LENGTH	LENGTH OF CUT	REACH	NECK DIAMETER	RADIUS	List Price	Discount %	Price
5041-3F-0.25R	3	6	58	5	12	2.8	0.25	£114.34	40	£ 68.60
5041-3F-0.5R	3	6	58	5	12	2.8	0.5	£114.34	40	£ 68.60
5041-4F-0.25R	4	6	58	7	16	3.7	0.25	£115.47	40	£ 69.28
5041-4F-0.5R	4	6	58	7	16	3.7	0.5	£115.47	40	£ 69.28
5041-5F-0.25R	5	6	58	9	20	4.7	0.25	£117.35	40	£ 70.41
5041-5F-0.5R	5	6	58	9	20	4.7	0.5	£117.35	40	£ 70.41
5041-6F-0.25R	6	6	75	10	24	5.6	0.25	£121.67	40	£ 73.00
5041-6F-0.5R	6	6	75	10	24	5.6	0.5	£121.67	40	£ 73.00
5041-6F-0.75R	6	6	75	10	24	5.6	0.75	£121.67	40	£ 73.00
5041-6F-1.0R	6	6	75	10	24	5.6	1	£121.67	40	£ 73.00
5041-8F-0.25R	8	8	75	12	32	7.5	0.25	£166.89	40	£ 100.13
5041-8F-0.5R	8	8	75	12	32	7.5	0.5	£166.89	40	£ 100.13
5041-8F-0.75R	8	8	75	12	32	7.5	0.75	£166.89	40	£ 100.13
5041-8F-1.0R	8	8	75	12	32	7.5	1	£166.89	40	£ 100.13
5041-8F-1.25R	8	8	75	12	32	7.5	1.25	£166.89	40	£ 100.13
5041-8F-1.5R	8	8	75	12	32	7.5	1.5	£166.89	40	£ 100.13
5041-8F-2.0R	8	8	75	12	32	7.5	2	£166.89	40	£ 100.13
5041-8F-2.5R	8	8	75	12	32	7.5	2.5	£166.89	40	£ 100.13
5041-8F-3.0R	8	8	75	12	32	7.5	3	£166.89	40	£ 100.13
5041-10F-0.25R	10	10	100	15	40	9.4	0.25	£226.36	40	£ 135.82
5041-10F-0.5R	10	10	100	15	40	9.4	0.5	£226.36	40	£ 135.82
5041-10F-1.0R	10	10	100	15	40	9.4	1	£226.36	40	£ 135.82
5041-10F-1.25R	10	10	100	15	40	9.4	1.25	£226.36	40	£ 135.82
5041-10F-1.5R	10	10	100	15	40	9.4	1.5	£226.36	40	£ 135.82
5041-10F-2.0R	10	10	100	15	40	9.4	2	£226.36	40	£ 135.82
5041-10F-2.5R	10	10	100	15	40	9.4	2.5	£226.36	40	£ 135.82
5041-10F-3.0R	10	10	100	15	40	9.4	3	£226.36	40	£ 135.82
5041-12F-0.25R	12	12	100	18	48	11.3	0.25	£284.05	40	£ 170.43
5041-12F-0.5R	12	12	100	18	48	11.3	0.5	£284.05	40	£ 170.43
5041-12F-0.75R	12	12	100	18	48	11.3	0.75	£284.05	40	£ 170.43
5041-12F-1.0R	12	12	100	18	48	11.3	1	£284.05	40	£ 170.43
5041-12F-1.25R	12	12	100	18	48	11.3	1.25	£284.05	40	£ 170.43
5041-12F-1.5R	12	12	100	18	48	11.3	1.5	£284.05	40	£ 170.43
5041-12F-2.0R	12	12	100	18	48	11.3	2	£284.05	40	£ 170.43
5041-12F-2.5R	12	12	100	18	48	11.3	2.5	£284.05	40	£ 170.43
5041-12F-3.0R	12	12	100	18	48	11.3	3	£284.05	40	£ 170.43
5041-16F-0.25R	16	16	125	24	64	15	0.25	£470.72	40	£ 282.43
5041-16F-0.5R	16	16	125	24	64	15	0.5	£470.72	40	£ 282.43
5041-16F-0.75R	16	16	125	24	64	15	0.75	£470.72	40	£ 282.43
5041-16F-1.0R	16	16	125	24	64	15	1	£470.72	40	£ 282.43
5041-16F-1.25R	16	16	125	24	64	15	1.25	£470.72	40	£ 282.43
5041-16F-1.5R	16	16	125	24	64	15	1.5	£470.72	40	£ 282.43
5041-16F-2.0R	16	16	125	24	64	15	2	£470.72	40	£ 282.43
5041-16F-2.5R	16	16	125	24	64	15	2.5	£470.72	40	£ 282.43
5041-16F-3.0R	16	16	125	24	64	15	3	£470.72	40	£ 282.43
5041-16F-4.0R	16	16	125	24	64	15	4	£470.72	40	£ 282.43
